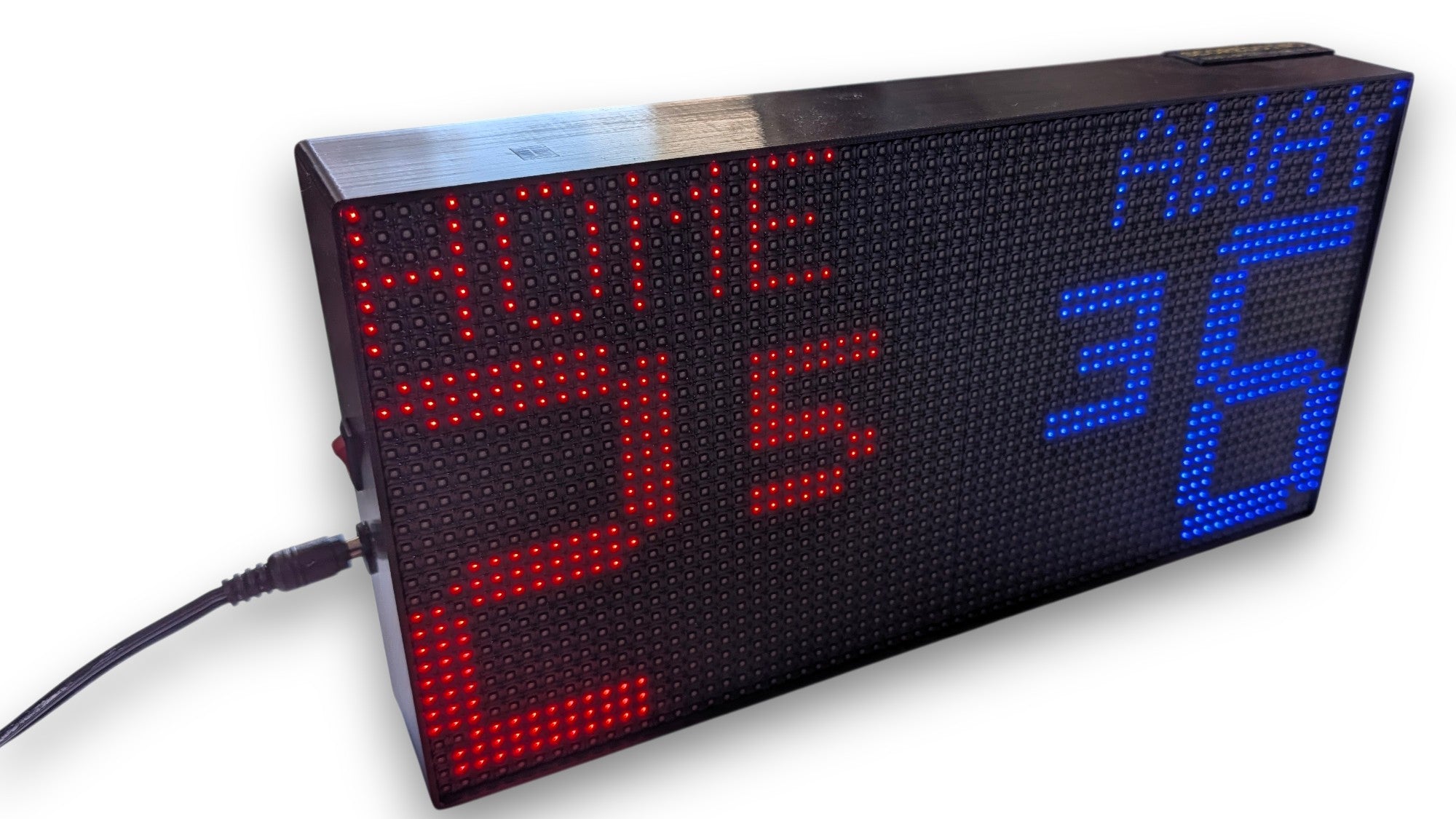

SIZE 7- Wi-Fi controlled Indoor digital scoreboard with P5 64x32 pixels RGB LED matrix- 32cmx16cm / 12.6in x 6.3in / 1.05ft x 0.52ft

This indoor RGB digital scoreboard is designed to provide a simple, portable, and affordable scoring solution for hobbyists, indoor sports clubs, community venues, and personal sports facilities. Available in multiple sizes, it displays team names, scores, a digital timer, and the quarter, inning, or period in the middle. The full-color RGB displays allow users to customize the colors of the team names, timer, and scores. The scoreboard can be operated wirelessly using either a browser-based WiFi application or an RF remote control. Users can choose a short- or long-range RF remote according to the size of their venue and required operating distance. Every scoreboard is housed in a custom 3D-printed PETG enclosure and developed by the Scoreduino team with simplicity, portability, and affordability as key design goals.

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 3 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.
• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.
• Dedicated long range(200m) remote control (Optional):  Once the team names are set up via browser based app, users can use the remote control to update scores, innings and timer.

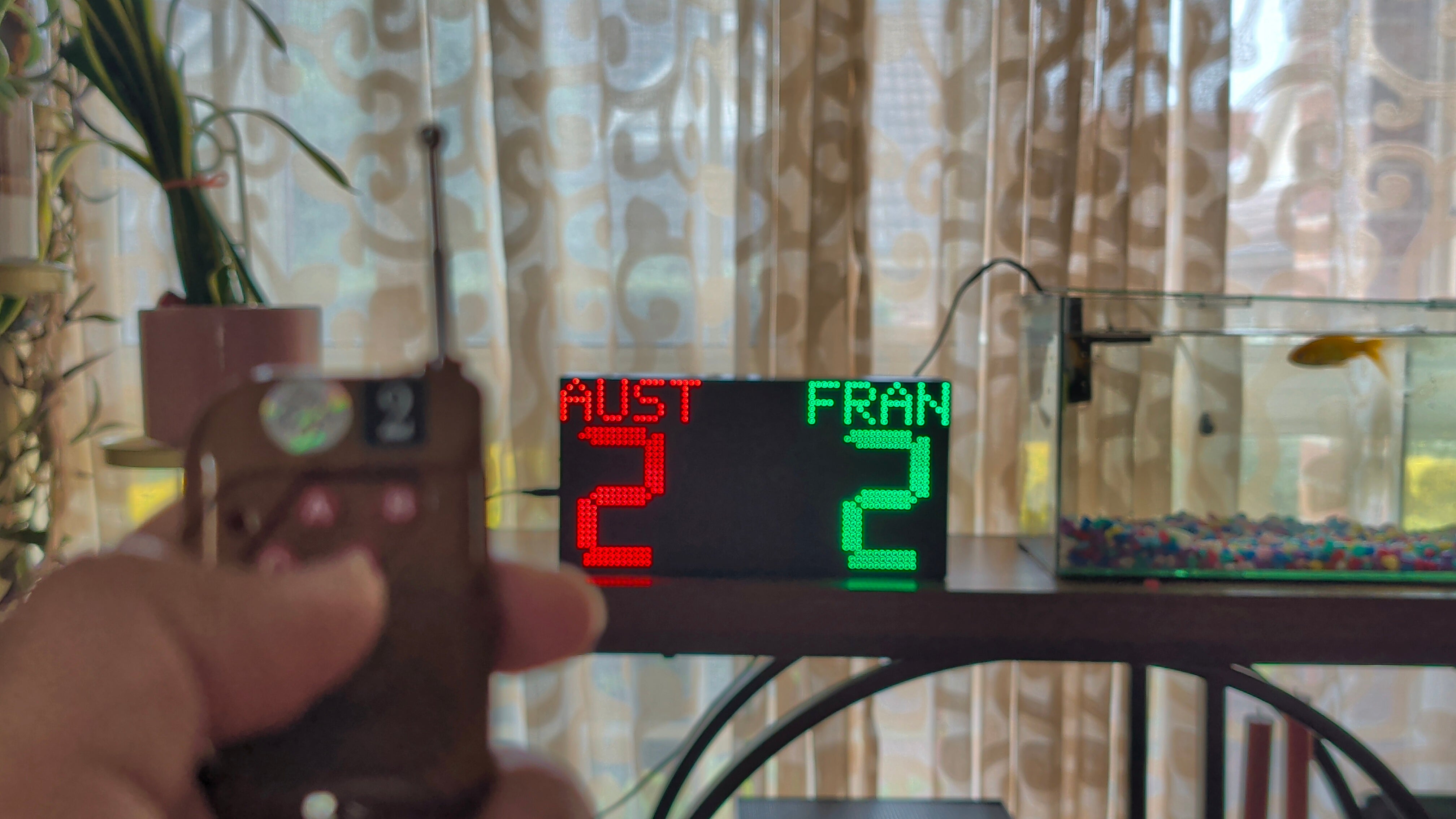

• Basic RF remote control (10m range) for SCORE4 Scoreboard. See the transmission range test video.
• Set colors: Users can set the colors of team names, scores and timer via the browser based interface. You can choose these colors: RED, GREEN, WHITE, YELLOW and BLUE


Specifications:

• Display Size (P5- 64x32 pixels): 32 cm x 16 cm (12.6 inches x 6.3 inches or approximately 1.05 ft x 0.52 ft).
• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-4A power supply.

Tutorial: How to connect single RGB matrix module to SCOREDUINO ESP32 module

Available Models

SCORE4 Scoreboard- with or without timer

Check out all the images on Google



A basic scoreboard featuring:

• With Digital timer/ Without Digital Timer

• Team name display
• Score display (up to 4 digits)

• Available sizes: 32cm x 16cm (P5- 64x32 pixels) and 19.2cm x 19.2cm(P3- 64x64 pixels)

• 32cm x 16cm In Inches: 12.6 inches x 6.3 inches
• 32cm x 16cm In Feet: 1.05 feet x 0.52 feet
• You can use remote control(optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.

SCORE5 Scoreboard

Check out all the images on Google

Assembly/Wiring tutorial for DIY enthusiasts

An advanced version for sports requiring:

• With Digital timer / Without Digital Timer

• Team name display
• Innings and scores (up to 5 digits)
• Available size: 32cm x 16cm (P5- 64x32 pixels)

• 32cm x 16cm In Inches: 12.6 inches x 6.3 inches
• 32cm x 16cm In Feet: 1.05 feet x 0.52 feet
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE5” represents the capability to display scores up to 5 digits.

SCORE6 Ping Pong Table Tennis Scoreboard

Buy Similar scoreboard- P3- 192x96cm

Check out all the images on Google

Assembly/Wiring tutorial

Designed for games like table tennis or ping pong, it includes:

• Team name display
• Set score display
• Main score display (up to 6 digits, including set scores)
• Available sizes: 32cm x 16cm (P5- 64x32 pixels)

• 32cm x 16cm In Inches: 12.6 inches x 6.3 inches
• 32cm x 16cm In Feet: 1.05 feet x 0.52 feet
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE6” signifies its ability to display up to 6 digits, catering to comprehensive scoring requirements.

Assembly/Wiring tutorial

Package Includes

1. P5- 64x32 Pixels RGB Matrix Display (32 cm x 16 cm)

2. Data Cable: Ensures seamless connectivity between modules.
3. Power Cable: For efficient and safe power delivery.
4. SCOREDUINO Wi-Fi Module: The core controller of the scoreboard.
5. 5V-4A Power Supply: Provides sufficient power for stable operation.

DIY Package does not include Enclosure and Remote Control

Fully Assembled Scoreboard With Enclosure and Remote Control:

1. Fully Assembled Scoreboard with enclosure(with all the parts required)
2. 5V-4A Power supply
3. Remote Control

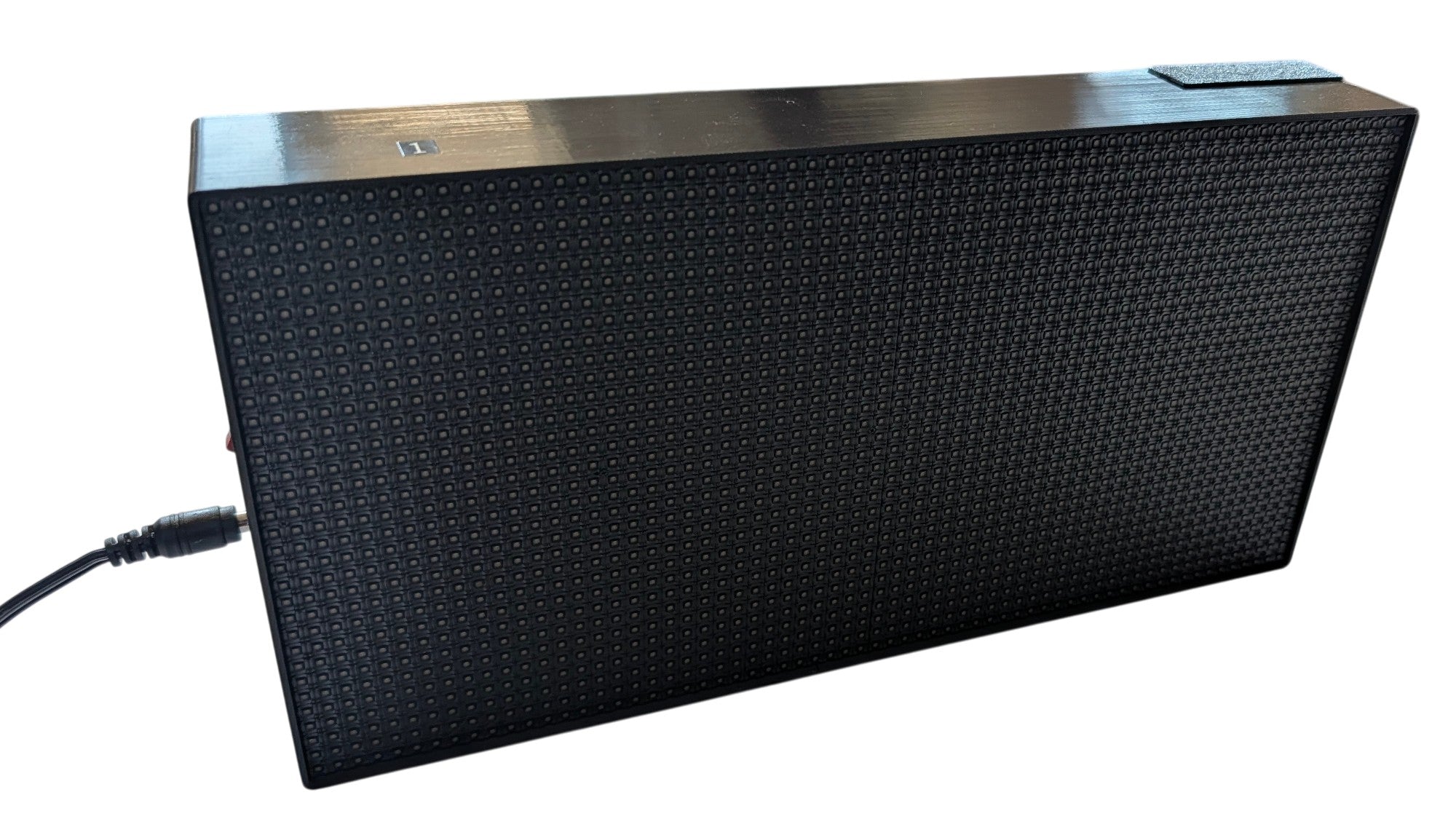

About 3D printed Enclosure:

Please note that this scoreboard uses a 3D printed enclosure rather than a folded metal enclosure.

Because large parts exceed the printing size of most 3D printers, the enclosure is manufactured in multiple sections which are permanently joined together.

As a result, you may notice:

• Small join lines

• Minor glue marks

• Slight surface blemishes

• Normal 3D printing layer lines

These cosmetic characteristics are normal and do not affect the performance, strength or durability of the scoreboard.

The enclosure is designed to:

• Securely hold the electronics

• Protect the display

• Keep the scoreboard lightweight

• Make transportation easy

Once installed during a game, the focus is on the bright LED display rather than the enclosure itself.

Whether you’re hosting a competitive game or just enjoying some friendly matches, these customizable, feature-rich digital scoreboards will elevate the experience for players and spectators alike.

Read more about the enclosure
