32cmx32cm Digital Cricket Scoreboard with Runs, Wickets, Overs, and Target display

Digital Cricket Scoreboard – 2PCS Dual-Colour P10 Outdoor Display (Runs, Wickets, Overs + Target)

A compact, portable, and fully programmable digital cricket scoreboard system designed for outdoor cricket grounds, clubs, academies, and training facilities. Built with dual-color P10 LED displays (recommended Green & White) for high visibility in outdoor conditions.

Check out all the images at https://photos.app.goo.gl/6U9yifNDBPqVqhrS9

📏 Display Configuration & Size

• Main Display Unit: 2 × P10 LED panels

• Each Panel Size: 32 cm × 16 cm

• Total Combined Display Area: 32 cm × 32 cm

• Spacing: Small gap (cm-level spacing) between the two panels when joined

• Digit Height: 16 cm (high-visibility scoring digits)

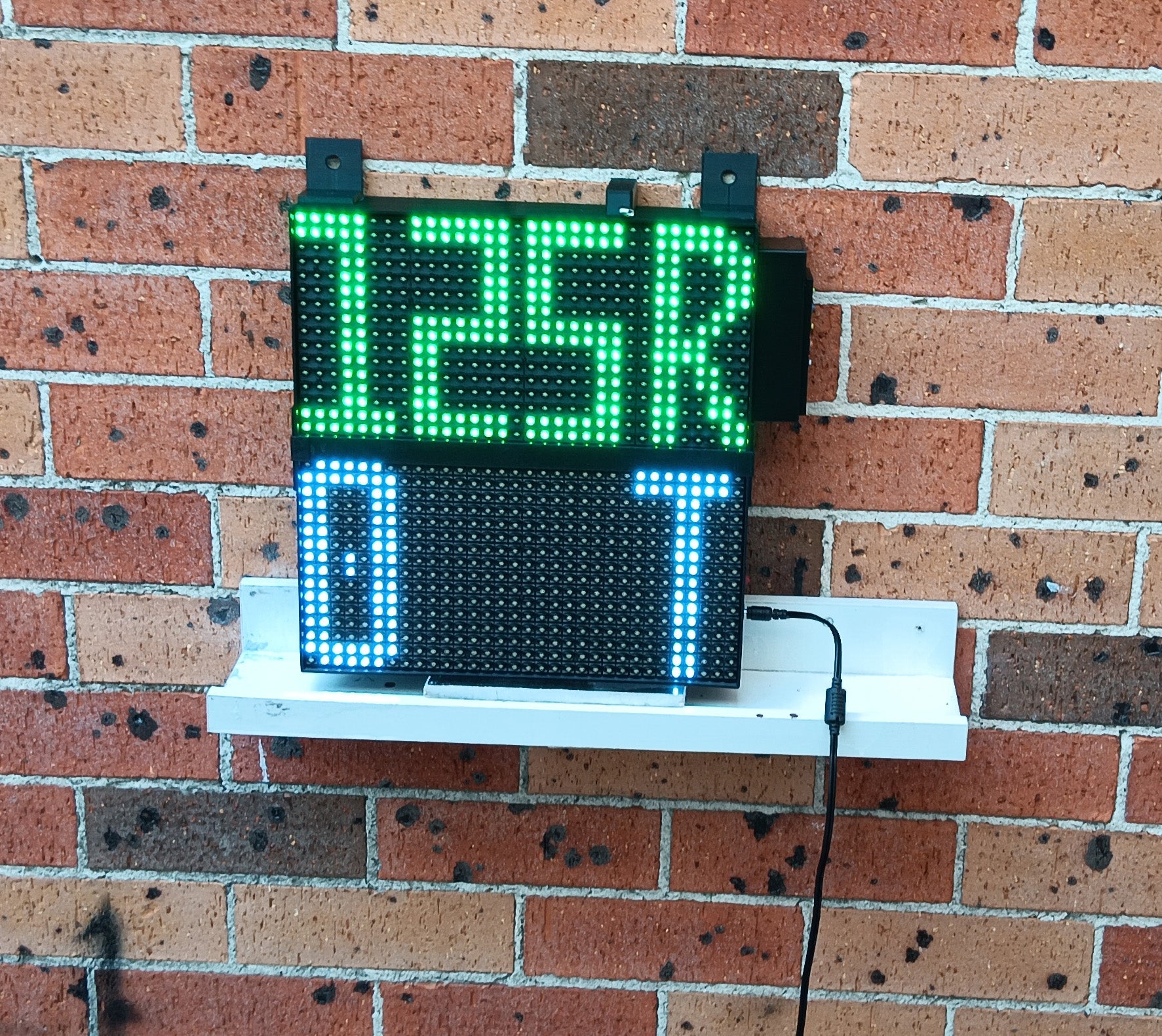

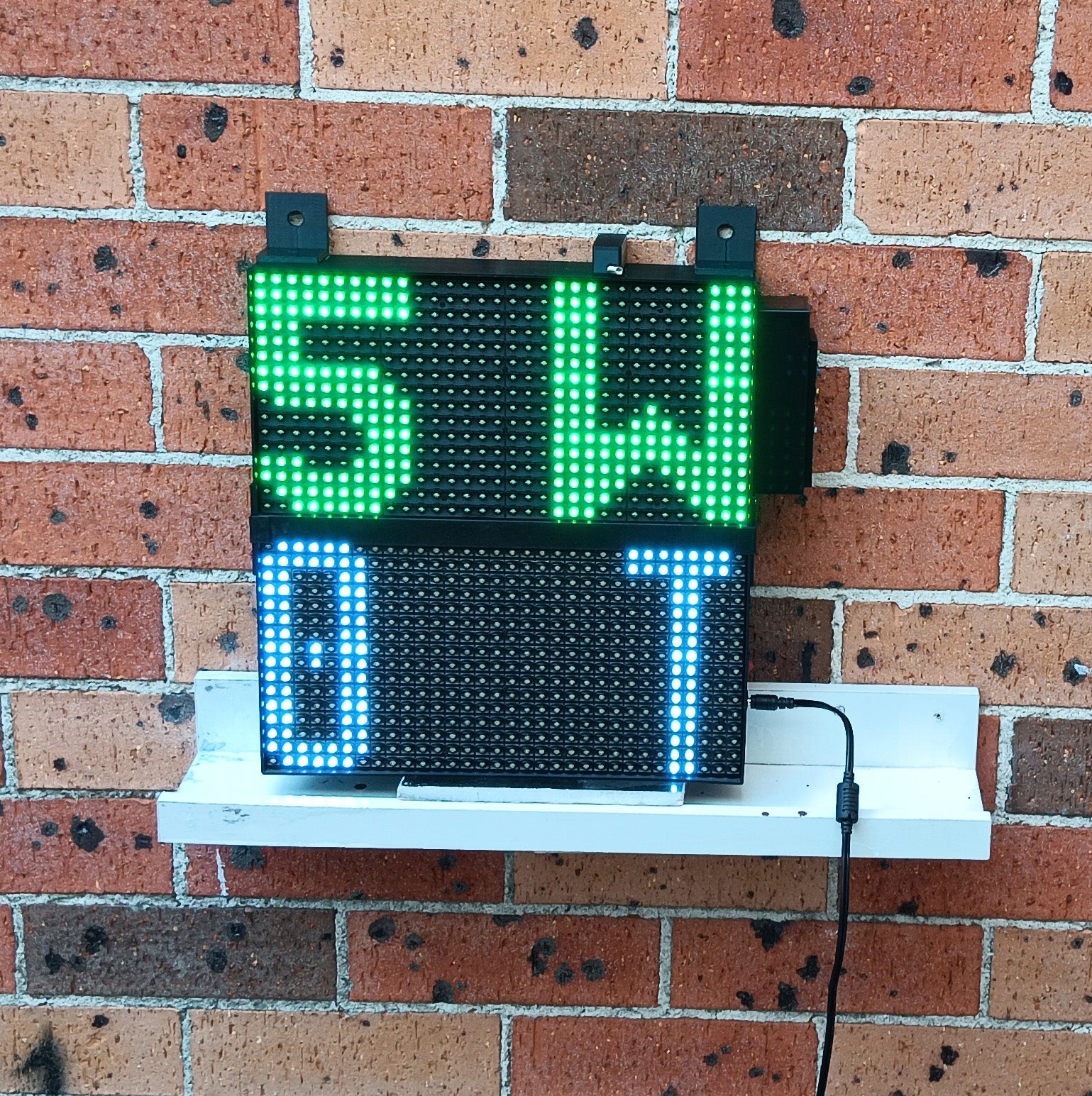

🏏 Score Display Function

The scoreboard intelligently cycles through match data for clear viewing:

• Displays Runs, Wickets, and Overs in rotation

• Each parameter is shown for 2 seconds

• Final combined display shows Runs + Wickets + Overs together for 2 seconds

• Ensures clear readability for players, officials, and spectators at distance

🏏Target Display Feature (Bottom Panel)

• Dedicated 32 cm × 16 cm bottom display for Target Score

• Can be:

  • Disabled during 1st innings

  • Activated for 2nd innings via browser-based control app

• Fully configurable through WiFi interface (no manual button required for target input)

📡 Control System (3 Operating Methods)

The scoreboard can be operated in three flexible ways:

1. Onboard Controller (Physical Control Box)

• Built-in buttons for quick score updates

• Direct manual operation at the scoreboard unit

2. Wireless Remote Controller

• Long-range control up to ~200 meters (open ground)

• Ideal for cricket fields and stadium environments

• Powered via:

  • 5V power bank, or

  • 9V rechargeable/non-rechargeable battery

3. WiFi Browser-Based Control (Smart Control)

• Connect via scoreboard’s built-in WiFi hotspot

• Open control panel in:

  • Android phones

  • iPhones

  • Tablets

  • Computers

• Full control of:

  • Runs

  • Wickets

  • Overs

  • Target setting

• No app installation required (browser-based interface)

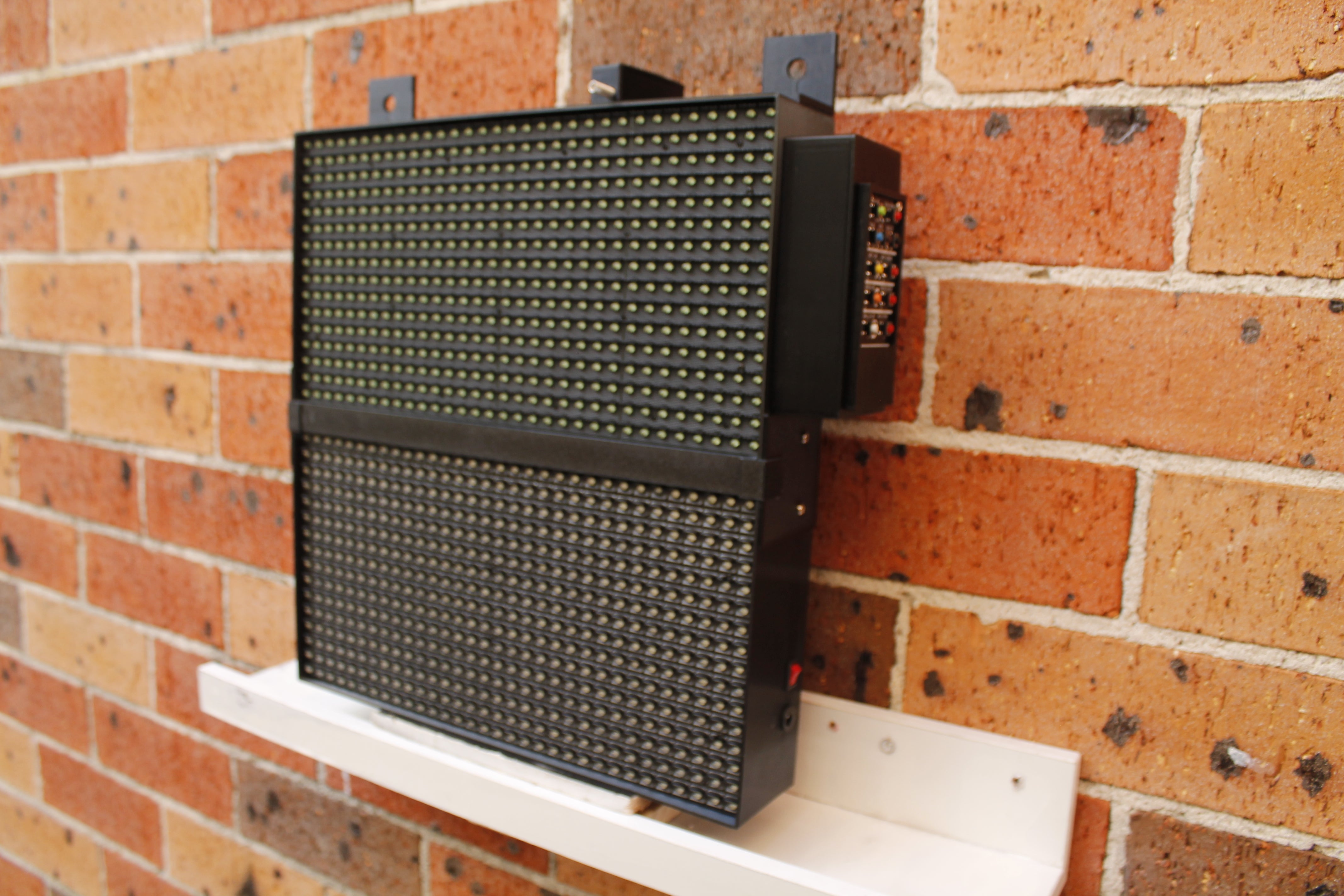

🏗 Installation & Portability

• Can be installed on:

  • Wall mounting setups

  • Custom-built stands

• Lightweight and portable design

• Total weight: approx. 1.5 kg

• Easy to carry and reposition between venues

🧱 Enclosure & Build Material (Important Information)

• Enclosure made using 3D printed PETG material

• PETG is a durable thermoplastic known for:

  • High impact resistance

  • Good weather resistance

  • Better flexibility than standard PLA plastic

  • Suitable for outdoor electronics housings (with protection)

⚠️ Important Notes About 3D Printed Enclosure:

• Large enclosure is printed in multiple parts and assembled using industrial glue

• Minor surface imperfections, seams, or glue marks may be visible

• This is normal for large-format 3D printed assemblies

• Appearance is secondary to functionality and durability

👉 The enclosure is designed to:

• Securely hold internal electronics

• Allow easy portability

• Protect internal components in outdoor use

⚡ 5V 4A Power Supply (Not Included)

• Power adapters are not included with the product

• Reason:

  • High UV exposure and extreme heat (e.g., Australia and similar climates) can damage standard power supplies when exposed outdoors

Recommended Usage:

• Keep power supply inside a protective box (cardboard/plastic enclosure)

• Avoid direct sunlight and heat exposure

• It is strongly recommended to keep a backup power supply for uninterrupted use

📦 Summary of Key Features

• Dual-color P10 outdoor LED scoreboard

• Displays Runs, Wickets, Overs + Target

• Rotating display system for match clarity

• WiFi browser control (no app required)

• Long-range remote control up to 500m

• Onboard physical control buttons

• Lightweight and portable (5 kg)

• 3D printed PETG enclosure

• Wall or stand mounting compatible

⚠️ Note

This product is designed primarily for functionality, visibility, and portability in real cricket environments. Minor cosmetic variations in enclosure finish are expected due to the nature of 3D printing.
