SIZE 6- Wi-Fi controlled Indoor digital scoreboard with P3 64x64 pixels RGB LED matrix- 19.2cmx19.2cm / 7.56 inches×7.56 inches

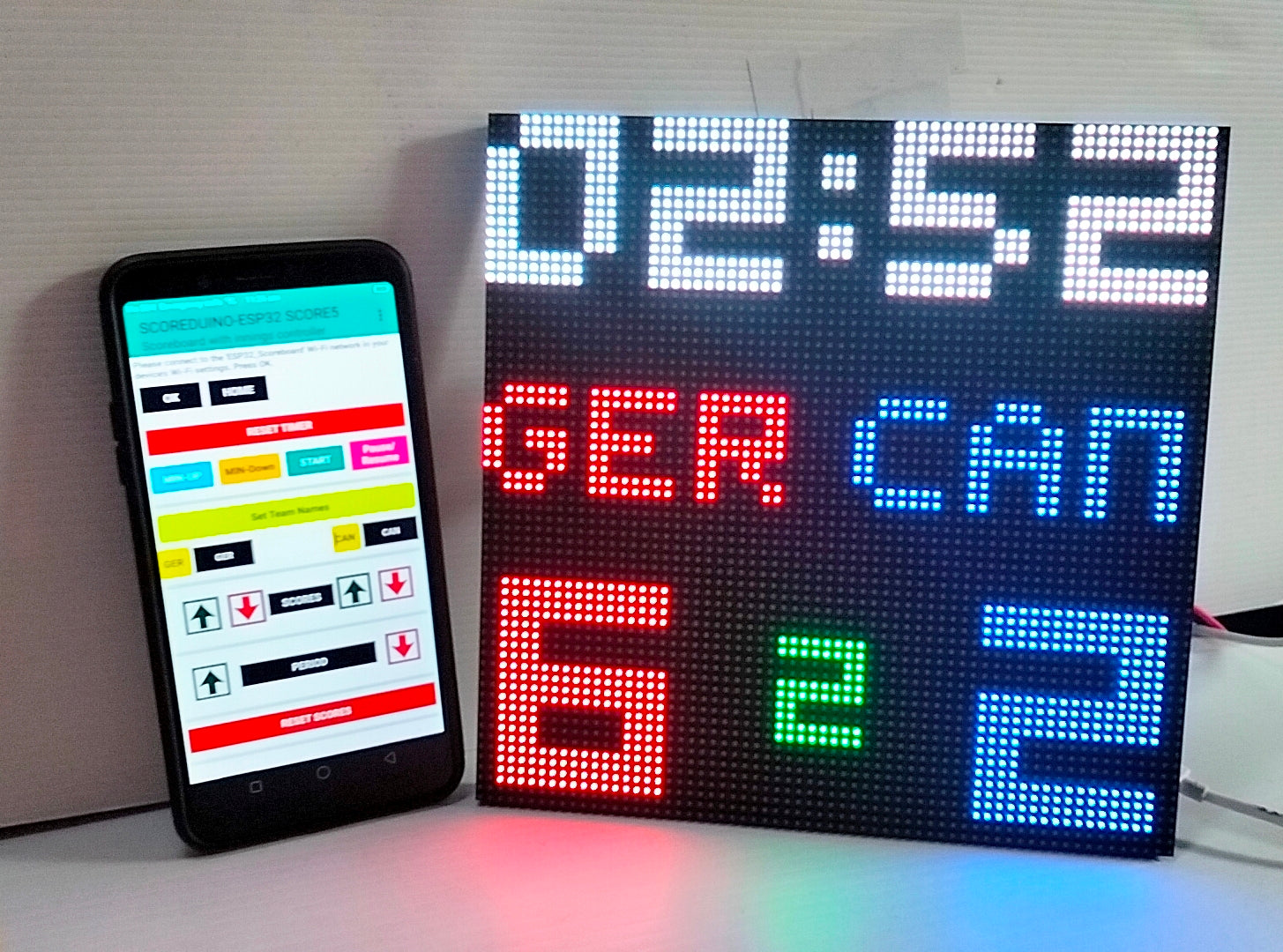

A practical and affordable digital scoreboard for indoor sports and hobby applications, featuring bright full-color RGB displays and wireless control. Different sizes are available to suit various indoor venues. The scoreboard can show team names, scores, a digital timer, and quarters, innings, or periods in the center section. Users have the flexibility to change the colors of the team names, timer, and scores. For convenient operation, the scoreboard provides a browser-based control interface that can be accessed by connecting a smartphone, tablet, or computer to the scoreboard's WiFi network. RF remote controls are also available in short- and long-range versions, allowing operation from a suitable distance. All models are enclosed in custom 3D-printed PETG housings.

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 3 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.

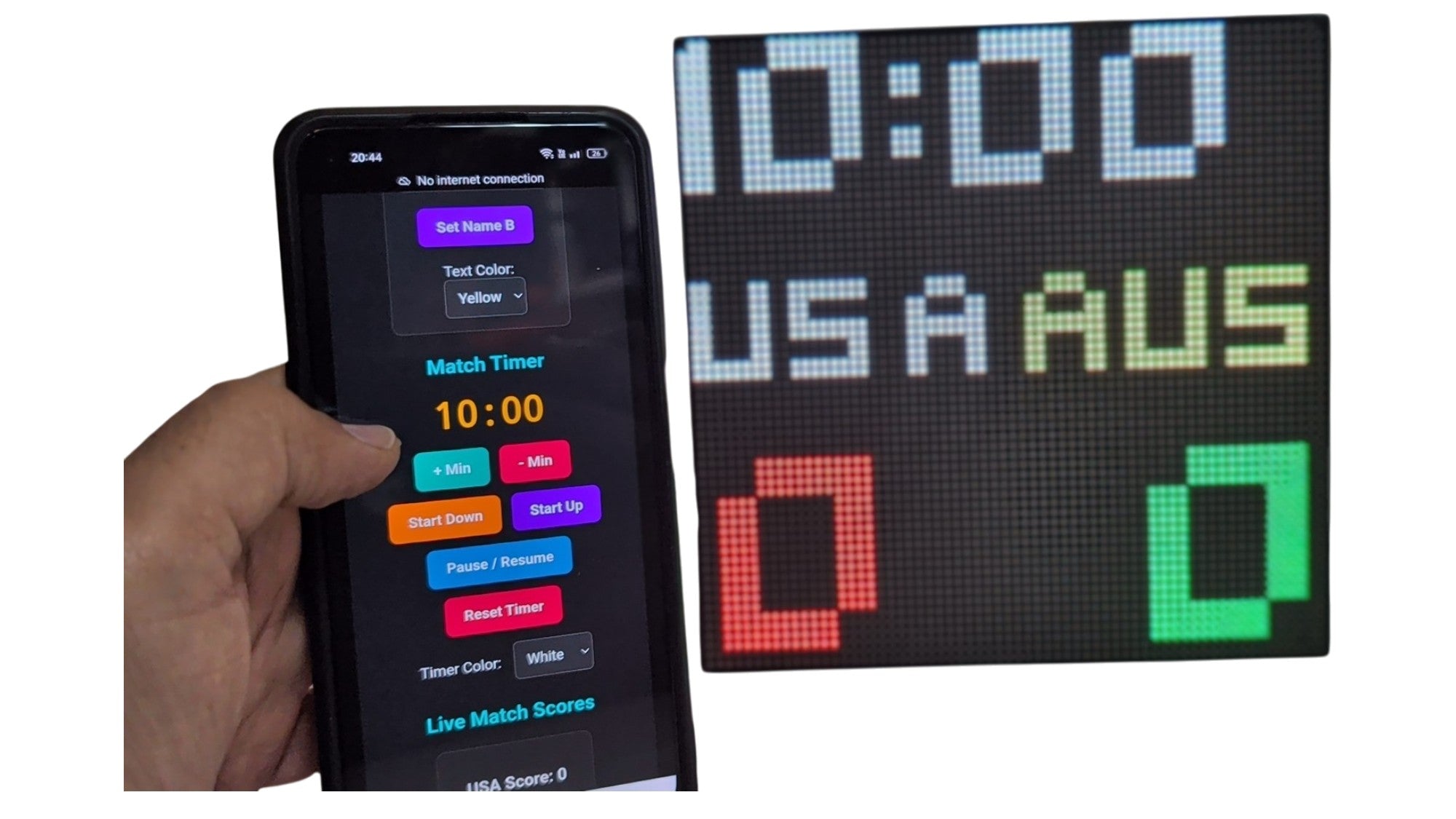

• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.
• Dedicated long range(200m) remote control (Optional):  Once the team names are set up via browser based app, users can use the remote control to update scores, innings and timer.
• Set colors: Users can set the colors of team names, scores and timer via the browser based interface. You can choose these colors: RED, GREEN, WHITE, YELLOW and BLUE


Specifications:

• Display Size - 1 set (P3- 64x64 pixels): each display dimensions: 19.2cmx19.2cm / 7.56 inches×7.56 inches

• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-4A power supply.

Available Models

SCORE4 Scoreboard- with timer- Images on Google Photos

Assembly/Wiring Tutorial

A basic scoreboard featuring:

• Digital timer

• Team name display- 3 characters
• Score display (up to 4 digits)

• Total size: 19.2cmx19.2cm / 7.56 inches×7.56 inches
• The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.
• You can use remote control(optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

SCORE5 Scoreboard

Check out all the images on Google

Assembly/Wiring Tutorial

An advanced version for sports featuring:

• Digital timer

• Team name display- up to 3 characters for each team.
• Innings and scores (up to 5 digits)
• Dimensions: 19.2cmx19.2cm / 7.56 inches×7.56 inches
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE5” represents the capability to display scores up to 5 digits.

Package Includes

Fully Assembled Scoreboard With Enclosure and Remote Control:

1. Fully Assembled Scoreboard with enclosure(with all the parts required)
2. 5V-4A Power supply
3. 1 x Remote Control

About 3D printed Enclosure:

Please note that this scoreboard uses a 3D printed enclosure rather than a folded metal enclosure.

Because large parts exceed the printing size of most 3D printers, the enclosure is manufactured in multiple sections which are permanently joined together.

As a result, you may notice:

• Small join lines

• Minor glue marks

• Slight surface blemishes

• Normal 3D printing layer lines

These cosmetic characteristics are normal and do not affect the performance, strength or durability of the scoreboard.

The enclosure is designed to:

• Securely hold the electronics

• Protect the display

• Keep the scoreboard lightweight

• Make transportation easy

Once installed during a game, the focus is on the bright LED display rather than the enclosure itself.

Whether you’re hosting a competitive game or just enjoying some friendly matches, these customizable, feature-rich digital scoreboards will elevate the experience for players and spectators alike.

Read more about the enclosure
